7075 T652 Aluminum Forging Plate
Short description:
- TEMPER: T652
- THICKNESS: 200-450mm (ready stock)
- WIDTH: 1525mm ; LENGTH: 3660mm

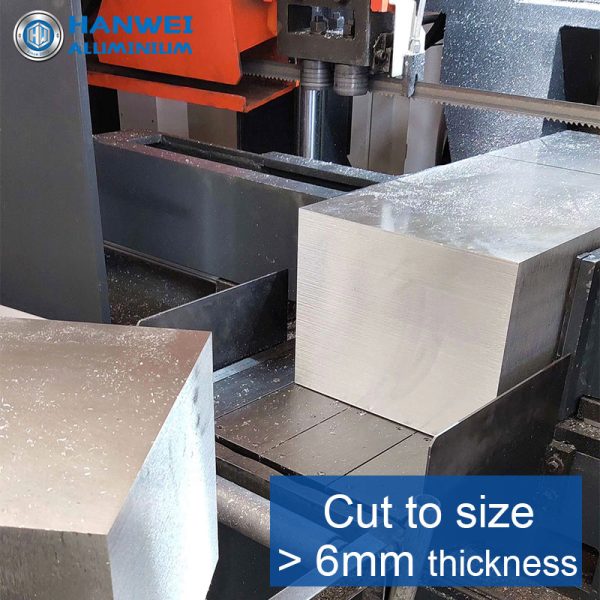

- CUTTING: Cut to size
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 7075 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.4% max
- Ferrum (Fe): 0.5% max
- Copper (Cu): 1.2-2.0%
- Manganese (Mn): 0.3% max
- Magnesium (Mg): 2.1-2.9%
- Chromium (Cr): 0.18-0.28%
- Zinc (Zn): 5.1-6.1%
- Titanium (Ti): 0.2% max
- Other elements: Each 0.05% max, Total 0.15% max
Typical mechanical properties of 7075 T652 aluminum
- Tensile strength: 540 MPa
- Yield strength: 470MPa
- Elongation: 7%
- Hardness (Brinell): 155 HB
(The values are typical or min values,for reference only.)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |
| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 7075 T652 Aluminum Forging Plate:
7075 T652 Aluminum Forging Plate is a high-strength aluminum alloy that has excellent mechanical properties and resistance to stress corrosion cracking. It is often used in applications where high strength, toughness, and fatigue resistance are required, such as aerospace, military, and sports equipment.
The T652 temper is a special heat treatment process that improves the mechanical properties of the alloy, making it more suitable for forging and other high-stress applications. It has a high tensile strength and yield strength, as well as good fatigue strength and machinability.
The aluminum forging plate is made by a precision forging process that results in a uniform grain structure and improved mechanical properties. It is available in various sizes and thicknesses and can be customized according to specific requirements.
7075 T652 Aluminum Forging Plate is also highly resistant to corrosion and has good weldability. It is a versatile material that can be used in various applications that require high strength, toughness, and corrosion resistance.
