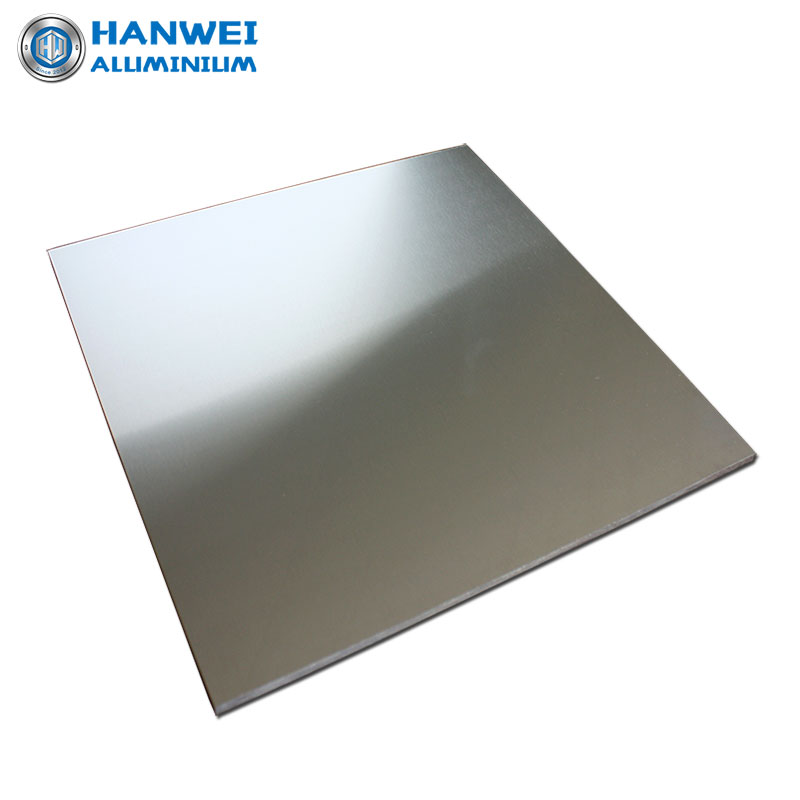

6061 High Precision Super Flat Aluminium Sheet
Short description:
- TEMPER: T651
- THICKNESS: 6-30mm (ready stock)
- WIDTH: 1250-2500mm ; LENGTH: 2500-3000mm
- FLATNESS: 0.1mm per square meter
- SURFACE ROUGHNESS : # 400 mesh
Product description:
Chemical composition of 6061 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.4-0.8%
- Ferrum (Fe): 0.7% max
- Copper (Cu): 0.15-0.4%
- Manganese (Mn): 0.15% max
- Magnesium (Mg): 0.8-1.2%
- Chromium (Cr): 0.04-0.35%
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.15% max
Typical mechanical properties of 6061T651 aluminum
- Tensile strength: 290 MPa
- Yield strength: 240 MPa
- Elongation: 12%
- Hardness (Brinell): 95 HB
(The values are typical or min values,for reference only.)
6061 T6 VS T651
6061 T651 is a certain amount of stretching and flatting on the basis of T6 temper .Reduced the internal stress, not easy to deform when processing.
In general, if there are no precise requirements for dimensional stability and elastic allowance, aluminum alloy 6061 T6 is good enough; If for the precision workpiece, in order to avoid the processing of elastic recovery and size can not maintain stability, it is necessary to choose 6061 T651,Such as 3C products,Precision parts.
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |
| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 6061 High Precision Super Flat Aluminium Sheet:
6061 High Precision Super Flat Aluminum Sheet is a kind of high-quality aluminum alloy material with excellent mechanical properties, weldability, and corrosion resistance. It is widely used in the manufacturing of precision parts, automotive components, electronic devices, and other fields that require high precision and surface quality.

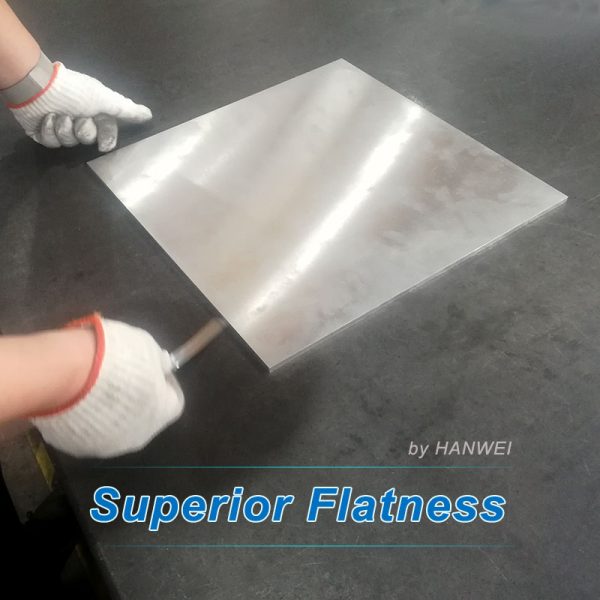

The super flatness of 6061 aluminum sheet is achieved through advanced processing technology and equipment, which can effectively eliminate internal stress, deformation, and other defects in the material. The surface roughness can reach Ra 0.1μm, and the thickness tolerance can be controlled within ±0.005mm. This ensures that the final product has excellent dimensional accuracy and surface quality.
In addition, 6061 High Precision Super Flat Aluminum Sheet is also easy to process and has good anodizing performance, which can further improve its corrosion resistance and surface aesthetics. It is a popular choice for applications that require high precision and high-quality appearance.
