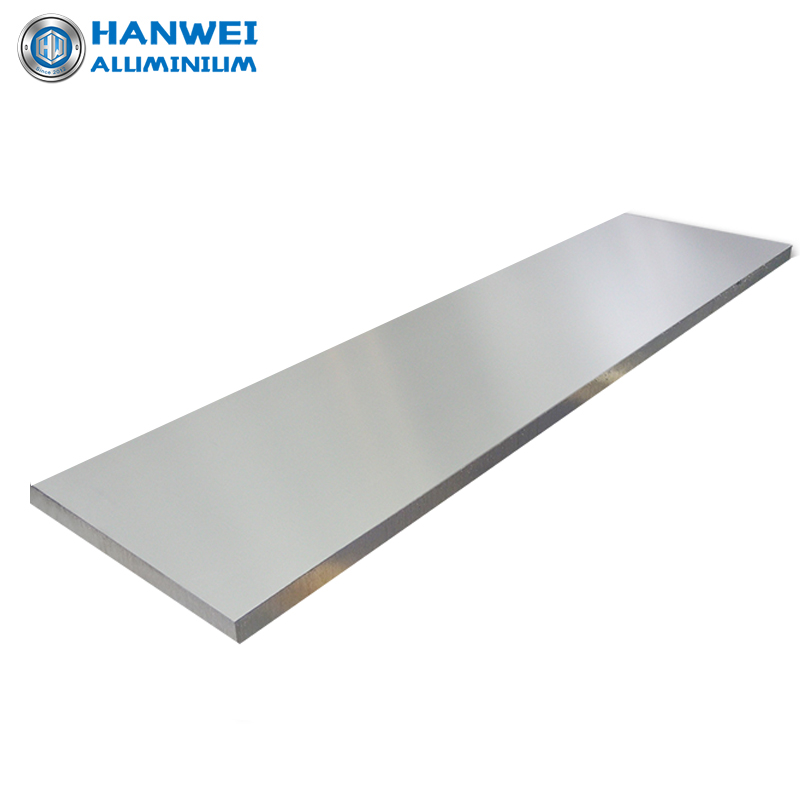

5083 Marine Grade Aluminum Plate
Short description:
- TEMPER: H116, H321
- THICKNESS: 1-30mm (ready stock)
- WIDTH: 2000mm ; LENGTH: 6000-8000mm
- CUTTING: sells for whole size,
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 5083 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.4%
- Ferrum (Fe): 0.4% max
- Copper (Cu): 0.1%
- Manganese (Mn): 0.4-1.0% max
- Magnesium (Mg): 4.0-4.9%
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.15% max
Typical mechanical properties of 5083 H321 aluminum
- Tensile strength: 305 -380MPa
- Yield strength: 215 MPa
- Elongation: 8%
- Hardness (Brinell):95-120 HB
(The values are typical or min values,for reference only.)
Certification by classification society of 5083 aluminum plate
CCS (by China,default)
ABS,BV,DNV,LR,GL (contact for details)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |

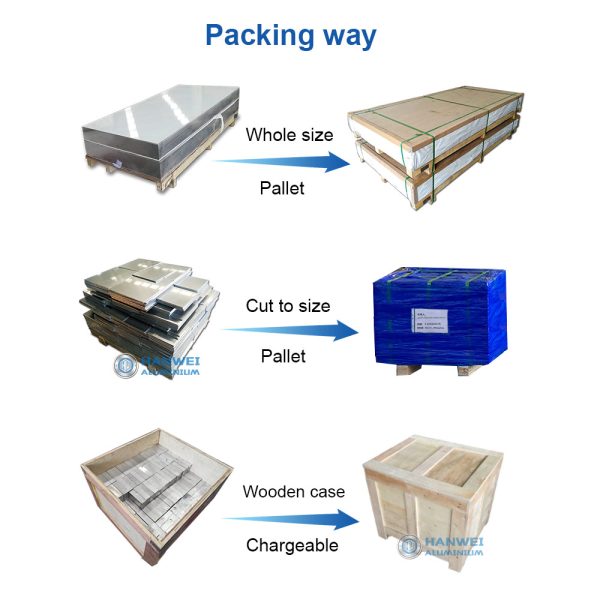

| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 5083 Marine Grade Aluminum Plate:
5083 Marine Grade Aluminum Plate is a high-strength aluminum alloy that is commonly used in shipbuilding applications due to its excellent resistance to seawater corrosion and fatigue. It is also known as marine grade aluminum, and is often used for the construction of hulls, decks, and other structural components of ships, boats, and yachts.
5083 aluminum plate has high strength and good weldability, making it a popular choice for shipbuilding. It has excellent resistance to corrosion in seawater and other harsh environments, which is essential for marine applications. The alloy also has good formability, which allows for the creation of complex shapes and designs.
In addition to its marine applications, 5083 aluminum plate is also used in other industries, such as transportation, aerospace, and structural engineering. It is available in various thicknesses and sizes, and can be cut to size to meet specific project requirements.
