5083 Aluminum Sheet Plate
Short description:
- TEMPER: O,H111,H112
- THICKNESS: 1-450mm (ready stock)
- WIDTH: 1250-2500mm ; LENGTH: 2500-5000mm
- CUTTING: Cut to size ( ≥8mm thickness),
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 5083 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.4%
- Ferrum (Fe): 0.4% max
- Copper (Cu): 0.1%
- Manganese (Mn): 0.4-1.0% max
- Magnesium (Mg): 4.0-4.9%
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.15% max
Typical mechanical properties of 5083 H112 aluminum
- Tensile strength: 275 MPa
- Yield strength: 125 MPa
- Elongation: 10%
- Hardness (Brinell): 87HB
(The values are typical or min values,for reference only.)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |

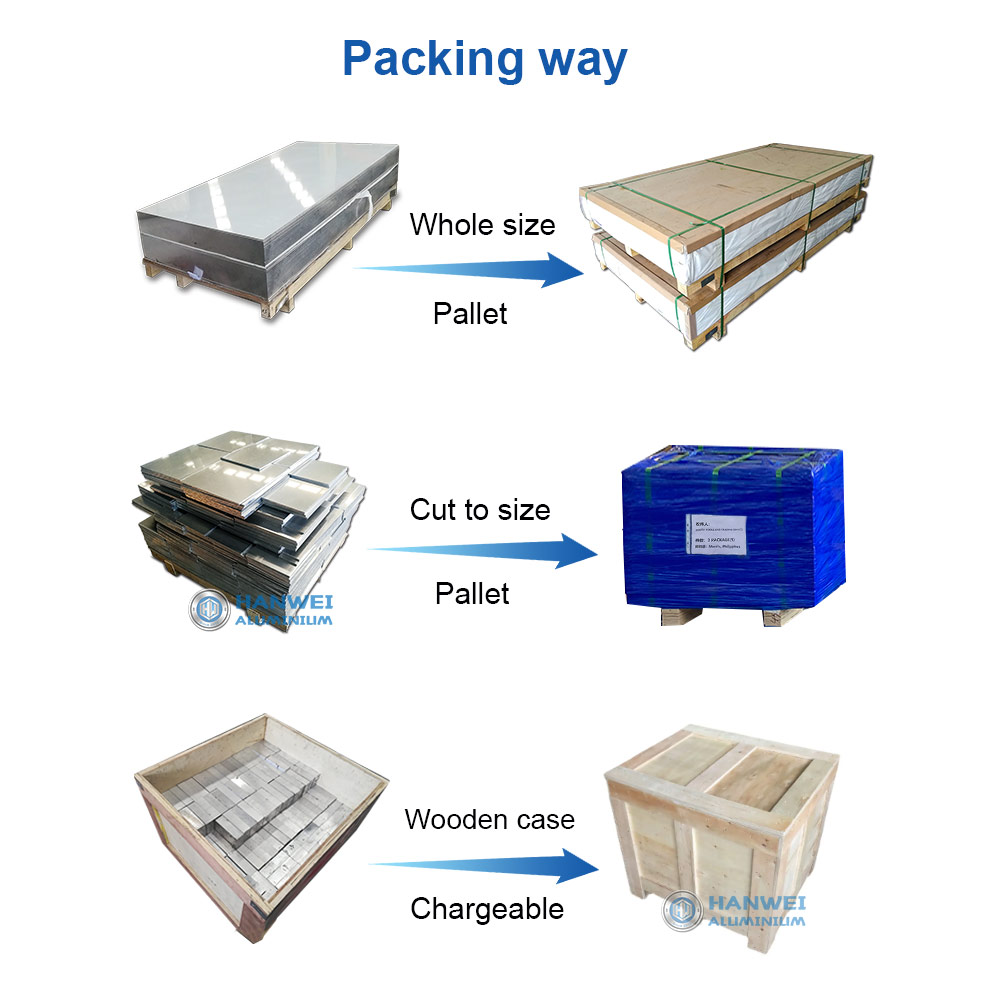

| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 5083 Aluminum Sheet Plate:
5083 aluminum sheet plate is a high-strength and corrosion-resistant aluminum alloy that is widely used in marine, aerospace, and industrial applications. It has excellent weldability, formability, and machinability, making it a popular choice for structural components, tanks, and pressure vessels.
5083 aluminum sheet plate is made from aluminum alloy with additions of magnesium, manganese, and chromium. The alloy composition provides high strength and good corrosion resistance, even in harsh marine environments. It also has good thermal conductivity and electrical conductivity properties.
5083 aluminum sheet plate is available in various sizes and thicknesses, and it can be cut and shaped to meet specific requirements. It can be processed with various surface treatments, such as anodizing, powder coating, and painting, to enhance its durability and aesthetic appearance.
