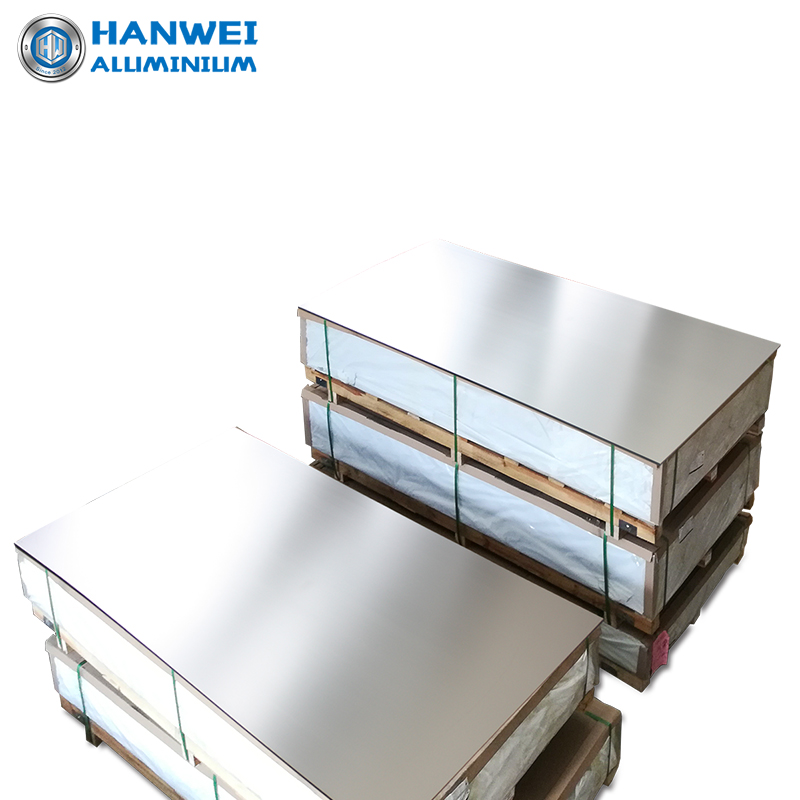

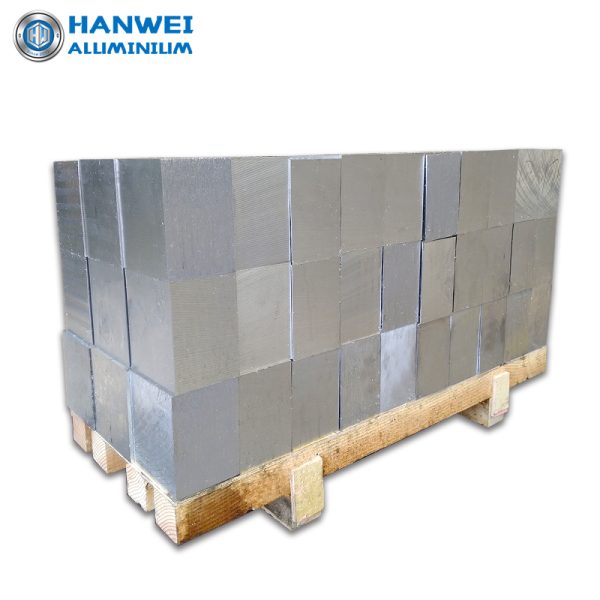

2024 Aluminum Sheet Plate
Short description:
- TEMPER: T4
- THICKNESS: 0.8-250mm (ready stock)
- WIDTH: 1250/1500/1525mm ; LENGTH: 2500/3000/3660mm
- CUTTING: Cut to size ( > 6mm thickness),
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 2024 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.5% max
- Ferrum (Fe): 0.5% max
- Copper (Cu): 3.8-4.9%
- Manganese (Mn): 0.3-0.9%
- Magnesium (Mg): 1.2-1.8%
- Chromium (Cr): 0.1% max
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.1% max
Typical mechanical properties of 2024 T4 aluminum
- Tensile strength: 425MPa
- Yield strength: 275 MPa
- Elongation: 15%
- Hardness (Brinell): 130 HB
(The values are typical or min values,for reference only.)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |
| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 2024 Aluminum Sheet Plate:
2024 aluminum sheet plate is a high-strength aluminum alloy with excellent fatigue resistance and machinability. It is commonly used in aerospace and structural applications, such as wing skins, fuselage frames, and truck wheels. The alloy also has good corrosion resistance and weldability, making it ideal for marine and industrial applications. The T3 and T4 tempers of 2024 aluminum sheet plate are suitable for bending and forming, while the T6 and T651 tempers are ideal for machining and welding. The sheet plate is available in a variety of thicknesses and widths to meet specific requirements.
