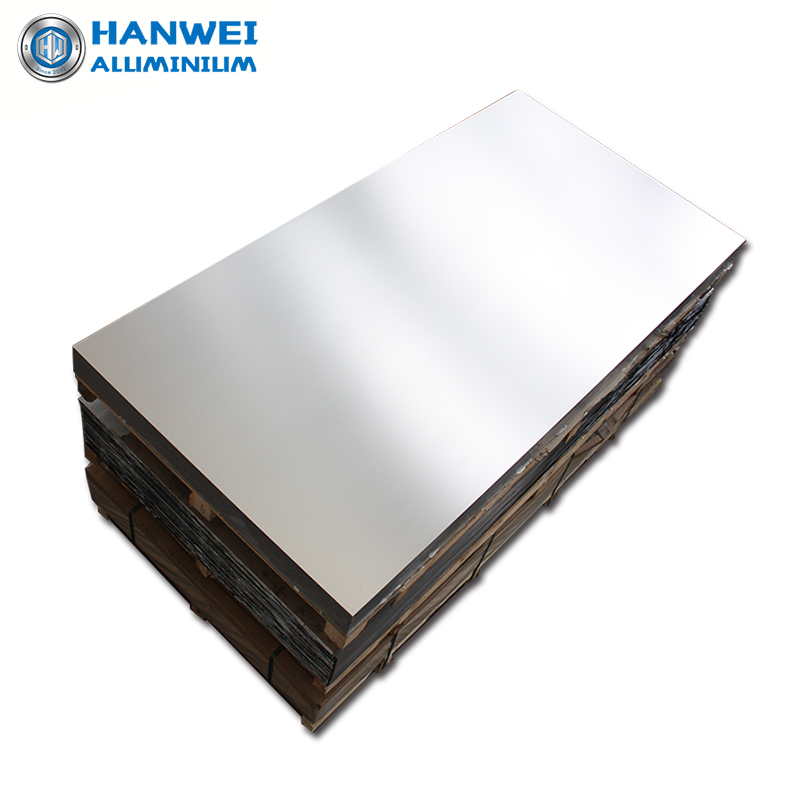

2017 Aluminum Sheet Plate
Short description:
- TEMPER: T4
- THICKNESS: 1-100mm (ready stock)
- WIDTH: 1250/1500/1525mm ; LENGTH: 2500/3000/3660mm

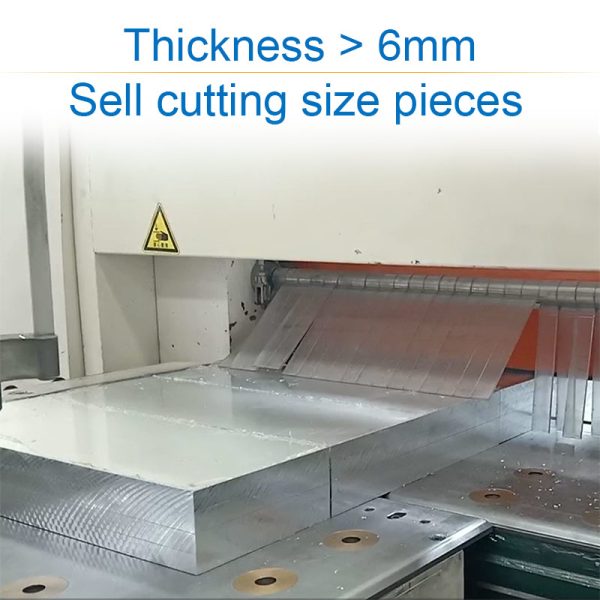

- CUTTING: Cut to size ( > 6mm thickness),
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 2017 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si):0.2-0.8%
- Ferrum (Fe): 0.7% max
- Copper (Cu): 3.5-4.5%
- Manganese (Mn): 0.4-1.0%
- Magnesium (Mg): 0.4-0.8%
- Chromium (Cr): 0.1% max
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.1% max
Typical mechanical properties of 2017 T4 aluminum
- Tensile strength: 355 MPa
- Yield strength: 195 MPa
- Elongation: 15%
- Hardness (Brinell): 112 HB
(The values are typical or min values,for reference only.)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |

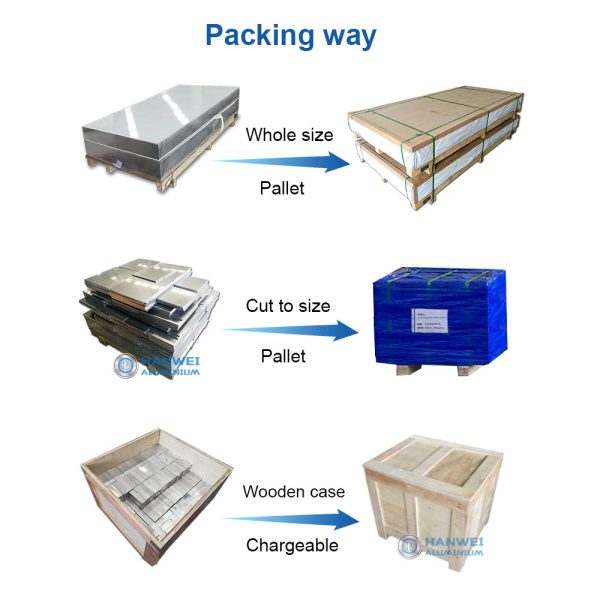

| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 2017 Aluminum Sheet Plate:
2017 aluminum sheet plate is a high-strength aluminum alloy that contains copper as the main alloying element. It has excellent machinability, good strength, and excellent resistance to fatigue. Due to its high copper content, 2017 aluminum alloy also has good corrosion resistance, making it suitable for use in marine and industrial applications.
2017 aluminum sheet plate is commonly used in the aerospace industry for aircraft structural components, such as wing spars and fuselage frames, due to its high strength-to-weight ratio. It is also used in other high-stress applications, such as structural components for bridges, cranes, and pressure vessels. Additionally, 2017 aluminum sheet plate is suitable for use in machining applications due to its excellent machinability.
Overall, 2017 aluminum sheet plate is a versatile material that offers excellent strength and corrosion resistance, making it a popular choice for a variety of high-stress applications.
