2017Aluminum Round bar
Short description:
- TYPE: Extruded aluminium rod
- TEMPER: T4
- DIAMETER: 10-200mm (ready stock)
- LENGTH: 2500/3000mm, Cut to short size ( φ≥ 30mm ),
- OTHERS: Material traceability, Mass-stock，Fast shippment
Product description:
Chemical composition of 2017 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.2-0.8%
- Ferrum (Fe): 0.7% max
- Copper (Cu): 3..5-4.5%
- Manganese (Mn): 0.4-1.0%
- Magnesium (Mg): 0.4-0.8%
- Chromium (Cr): 0.1% max
- Zinc (Zn): 0.25% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.1% max
Typical mechanical properties of 2017 T4 aluminum
For aluminum rod 2017 T4: φ≤120mm
- Tensile strength: ≥345 MPa
- Yield strength: ≥215 MPa
- Elongation: ≥12%
- Hardness (Brinell): 104 HB
(The values are typical or min values,for reference only.)
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |

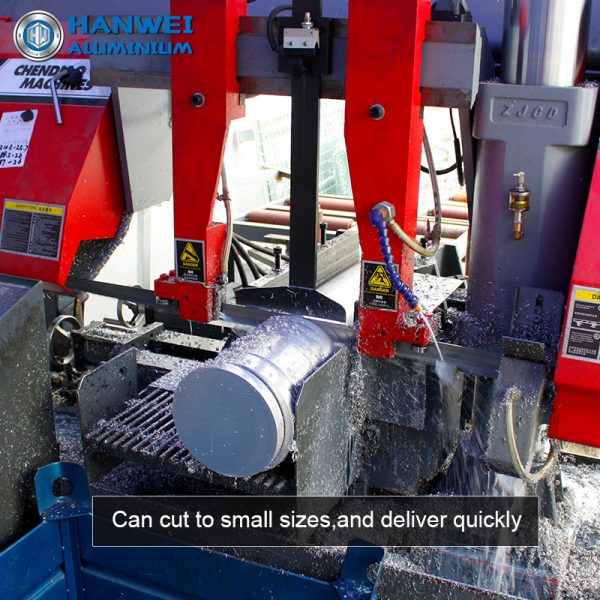

| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |
| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer’s requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
About 2017Aluminum Round bar：
2017 aluminum round bar is a high-strength aluminum alloy that contains copper as its main alloying element. It has good machinability and is often used in aerospace applications. Its strength can be further enhanced by heat treatment. The 2017 aluminum round bar is often used in applications that require high strength-to-weight ratio, such as aircraft fittings, gears, and shafts.
