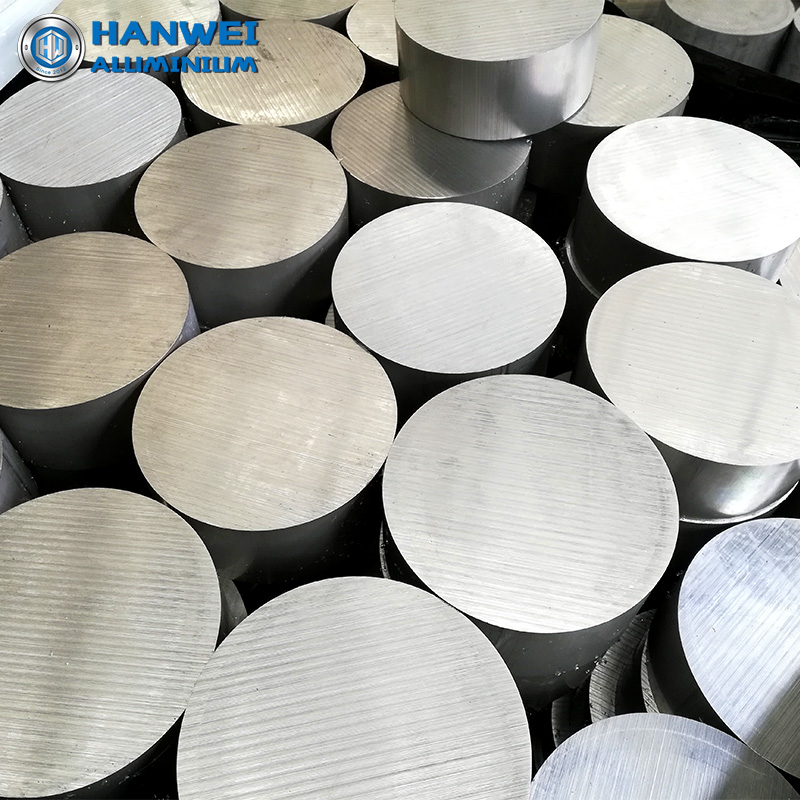

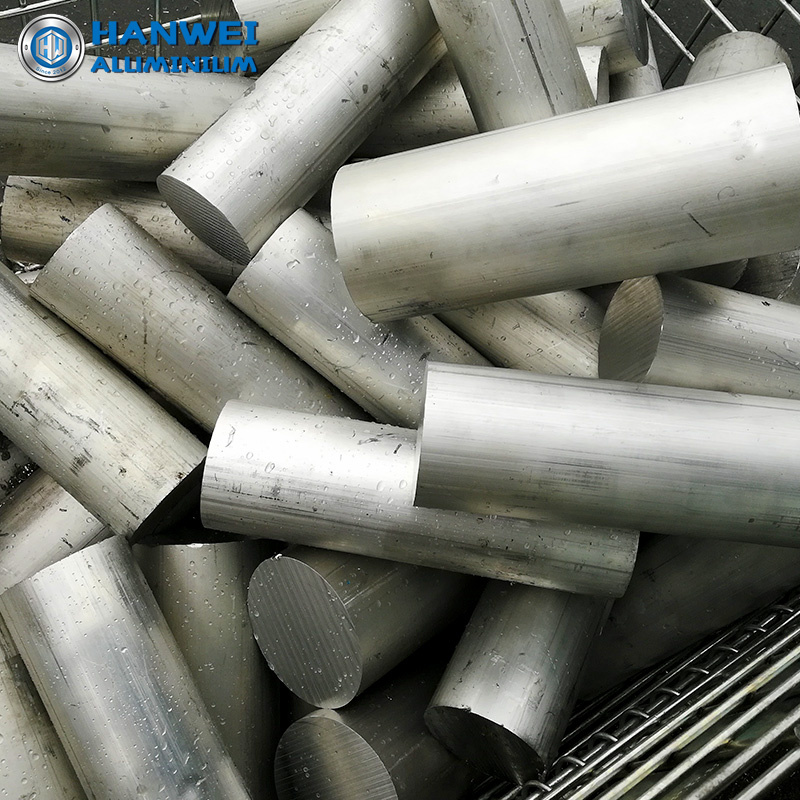

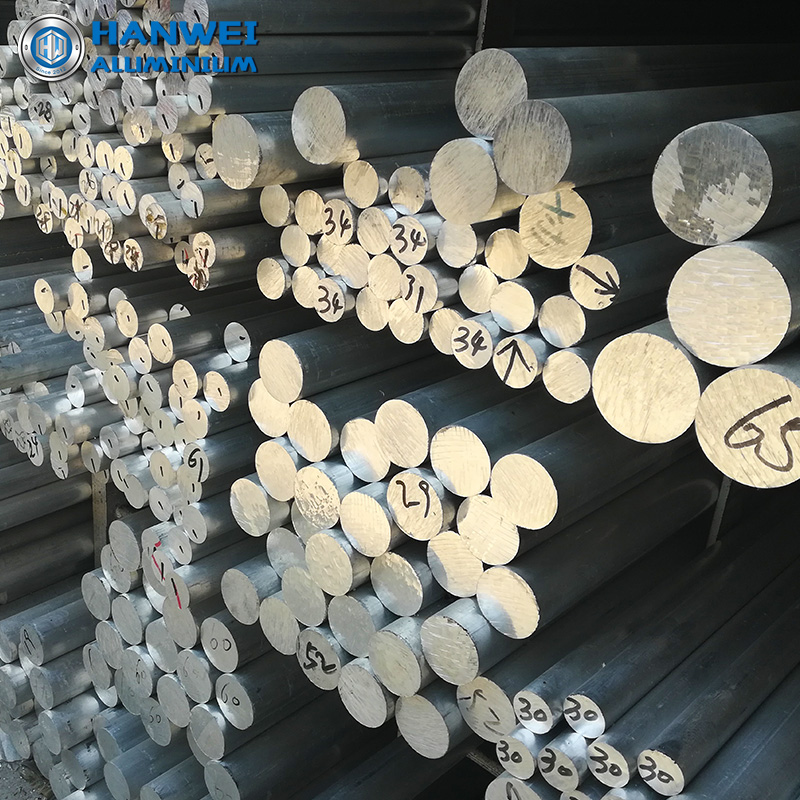

5052 Aluminum Round bar

Chemical composition of 5052 aluminum alloy

• Aluminum (Al): balance
• Magnesium (Mg): 2.2-2.8%
• Chromium (Cr): 0.15-0.35%
• Manganese (Mn): 0.1% max
• Copper (Cu): 0.1% max
• Iron (Fe): 0.4% max
• Zinc (Zn): 0.1% max
• Silicon (Si): 0.25% max
• Titanium (Ti): 0.15% max
• Other elements: Each 0.05% max, Total 0.1% max


  ---

Typical mechanical properties of 5052 H112 aluminum

For aluminum rod 5052 H112 φ< 200mm

• Tensile strength: ≥170 MPa
• Yield strength: ≥70 MPa
• Elongation: ≥15%
• Hardness (Brinell): 60 HB

(The values are typical or min values,for reference only.)

---

5052 aluminum round bar application

5052 aluminum alloy has good formability, weldability, and corrosion resistance，good performance for anodizing.It is one of the most widely used aluminium.

5052 aluminum rod uses for: automobile, 3C products, computer bracket, building curtain wall panel, suitcase, cans/covers, shutters, rod boxes, aluminum furniture,flange material, GIS shell, yacht, underwear mould,tooling, air storage, precision machining, etc.

---
