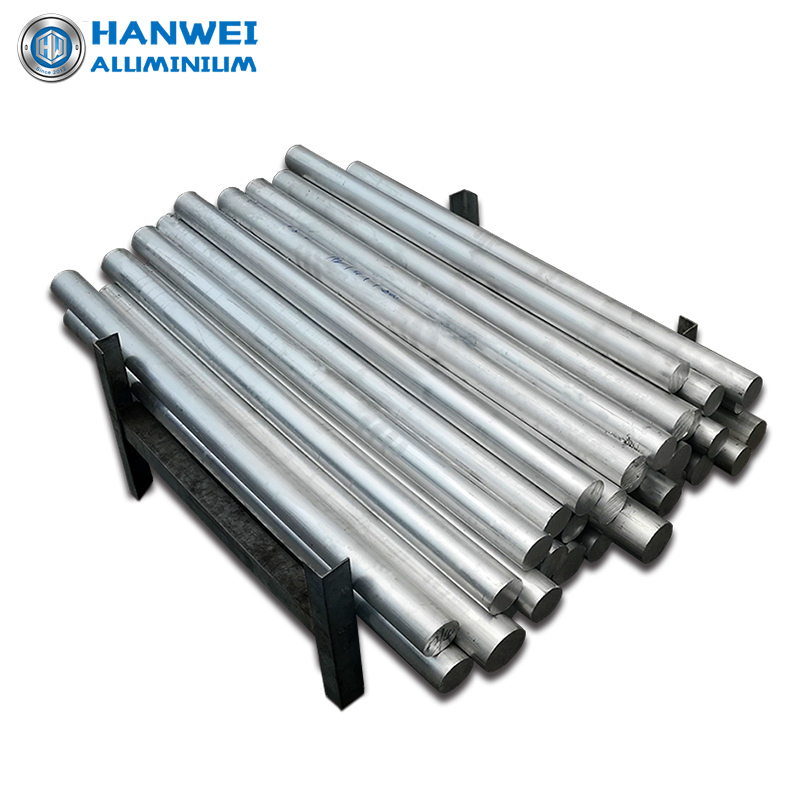

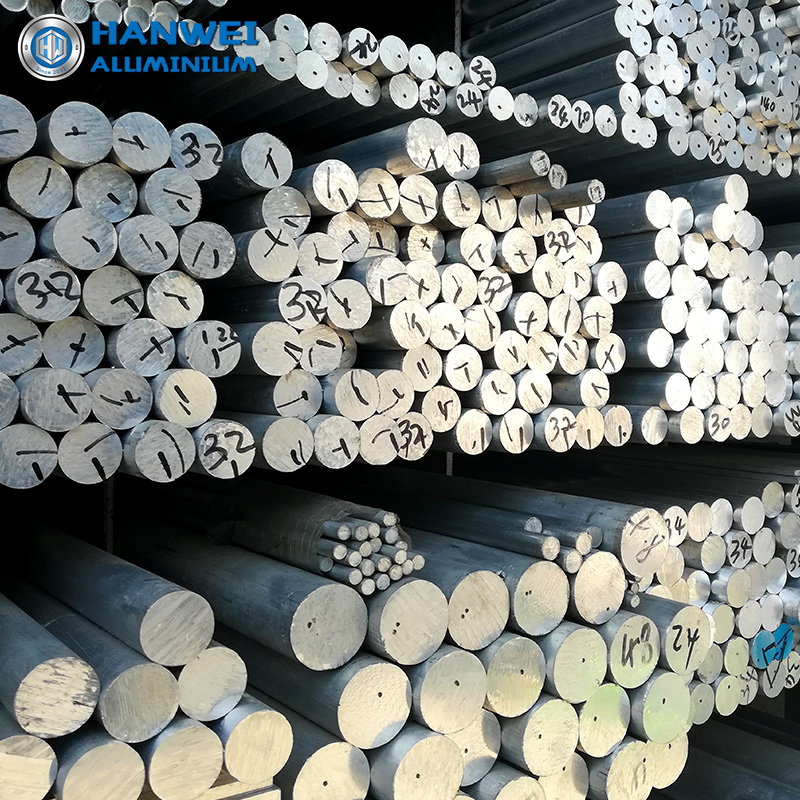

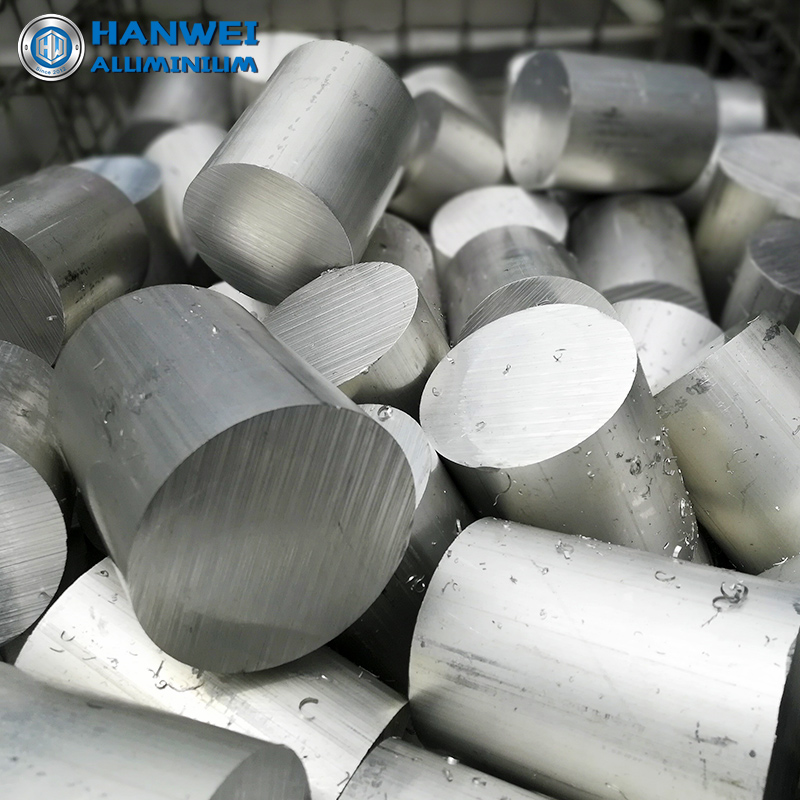

1060 Aluminum Round bar

Chemical composition of 1060 aluminum alloy

• Aluminum (Al): 99.6%
• Magnesium (Mg): 0.03% max
• Manganese (Mn): 0.05% max
• Copper (Cu): 0.04% max
• Ferrum (Fe): 0.35% max
• Zinc (Zn): 0.05% max
• Silicon (Si): 0.25% max
• Titanium (Ti): 0.03% max


  ---

Typical mechanical properties of 1060 aluminum

For aluminum rod 1060: φ≤150mm

• Tensile strength: 60-95 MPa
• Yield strength: ≥15 MPa
• Elongation: ≥22%
• Hardness (Brinell): 19 HB

(The values are typical or min values,for reference only.)

1060 aluminum round bar application

1060 is formed by adding a small amount of iron copper and other elements in pure aluminum, with excellent forming and processing characteristics, high corrosion resistance, very good anodizing effect, good weldability and electrical conductivity.

1060 aluminum bar is widely used in products with low strength requirements, such as chemical instruments, sheet processing workpiece, deep drawing or spinning concave utensils, welding parts, heat exchanger, busbar and other conductive materials, non-slip pattern plate, bell surface and plate, name plate, kitchenware, decorations, reflective utensils, etc.
